Seat heater (if equipped)
- There is a possibility that people with delicate skin may suffer slight burns even at low temperatures if they use the seat heater for a long period of time. When using the heater, always be sure to warn the persons concerned.
- Do not put anything on the seat which insulates against heat, such as a blanket, cushion, or similar items. This may cause the seat heater to overheat.
NOTE
Use of the seat heater for a long period
of time while the engine is not running
can cause battery discharge.

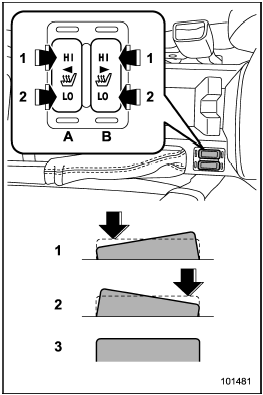

1) HI – Rapid heating
2) LO – Normal heating
3) OFF – Off
A) Left-hand side
B) Right-hand side
The seat heater operates when the ignition switch is either in the “Acc” or “ON” position.
To turn on the seat heater, press the “LO” or “HI” position on the switch, as desired, depending on the temperature.
Selecting the “HI” position will cause the seat to heat up quicker.
To turn off the seat heater, lightly press the opposite side of the current position.
The indicator next to the switch illuminates when the seat heater is in operation.
When the vehicle’s interior is warmed enough or before you leave the vehicle, be sure to turn the switch off.
